Autolabe 560 Tamp - Legacy

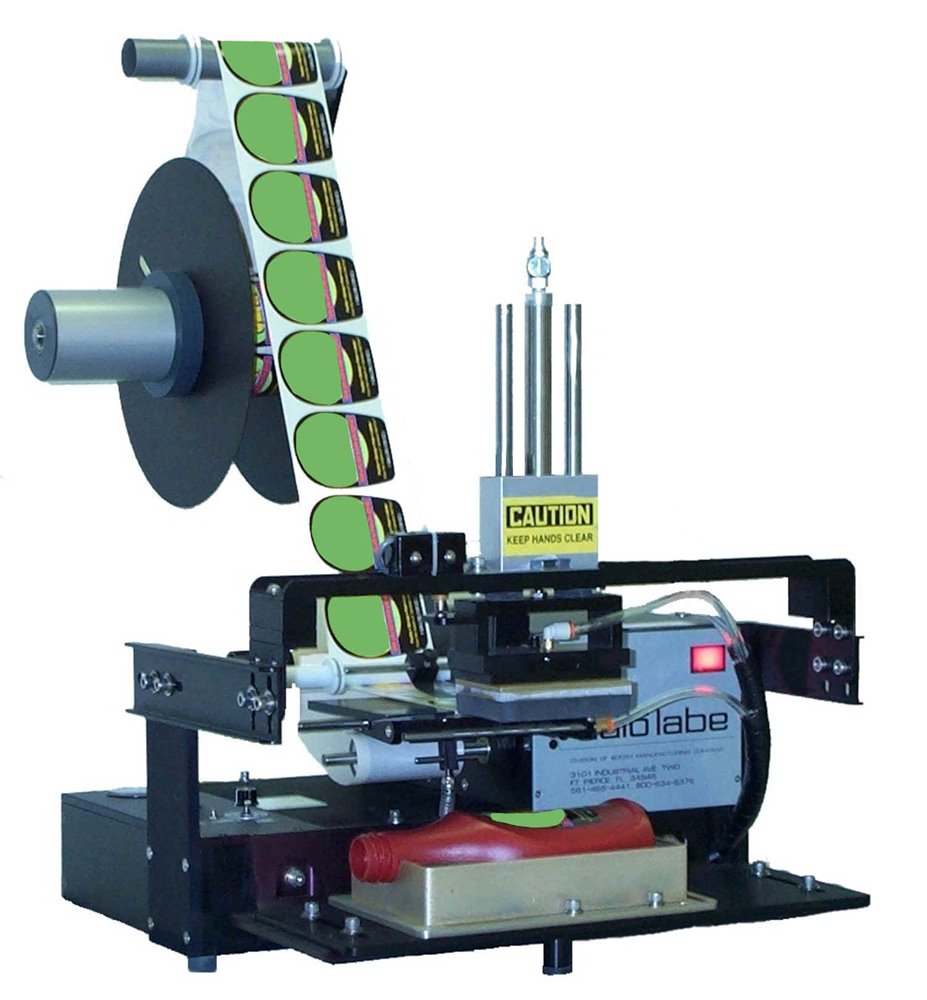

560 Semi-Automatic Tamp-Down Label Applicator

These dispensers advance individual or multiple-row labels and remove them from their lining similar to a manual dispenser, but instead of manually pulling on the liner, label advancement occurs when a trigger on the dispenser detects the absence of a label, such as when the operator removes the label. The sensor then closes the circuit and engages the motor, dispensing the next label until the sensor once again detects the label which opens the circuit.

Specifications:

  • Dimensions: Width - 17"(43cm) Length - 29"(74cm) Height - 26"(66cm)
  • Weight: 49lbs/22kg (approx.)
  • Electric: 115VAC/60Hz/1 AMPS (max.) or 220 VAC/50Hz
  • Air: 50 PSIG (max.)/6CFM
  • Labels: Standard 5" wide web width
  • 10" O.D. roll with 3" core
  • Die cut with 1/8" spacing
  • Accurately places labels on tops, sides or bottoms of products with flat or slightly curved surfaces.
  • Proven reliability
  • Cost effective transition from manual labeling to automatic labeling
  • Portable and lightweight table top unit
  • Label application activated by foot switch
  • Improves label accuracy and efficiency
